BioEntry W2 features a class-leading 1.2GHz Quad-core CPU that enhances user experience by offering World’s best matching speed, precise control of locking devices, and quick response for users.
The BioEntry W2 comes with a robust, vandal-resistant housing. Combining reinforced resin with Suprema’s sophisticated engineering, the BioEntry W2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IP67 ingress protection, BioEntry W2 is a perfect solution for outdoor applications.
BioEntry W2 offers superior ingress protection with its IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, BioEntry W2 is the ideal choice for outdoor applications.
Featuring dual-frequency RFID technology, BioEntry W2 supports both LF(125Khz) and HF(13.56MHz) RFID including all RFID standards that HID multiCLASS readers support. On top of fingerprint credential, BioEntry W2 supports most types of RFID card standards with a single device including MIFARE, HID iCLASS, DESFire, FeliCa, HID Prox, EM and NFC.
BioEntry W2 features new Live Finger Detection technology from Suprema. The previous live detection technology analyzes the dynamically changing pattern, liveness feature and unnaturalness feature of live and new fingers. Along with improvements to the existing algorithm, the new detection technology implements liveness decision engine using dual light source imaging. Using infra-red and white light, the engine blocks fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and so on.
BioEntry W2 supports a seamless power sourcing over Ethernet cable(CAT5/6) without any degrading network performance and reach. Suprema’s PoE featured devices compliance to IEEE802.3af standard, to provide users with lower installation cost, simpler cabling and lower maintenance cost.
BioEntry W2 comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.
Scroll left/right
RFID
RF Option
Mobile Card
Protections
Ingress Protection
Vandal Proof
Fingerprint
Template
Extractor / Matcher
Live Fingerprint Detection
Capacity (Fingerprint)
Users (1:1)
* Based on one finger enrollment per user
Users (1:N)* Based on one finger enrollment per user
Max. Finger per User
Text Log
Image Log
HW
CPU
Memory
LCD Type
LED
Sound
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Weight
Dimension (WxHxD, mm)
Tamper
Interface
Wi-Fi
Ethernet
RS-485
Wiegand
TTL Input
Relay
USB
SD Card
PoE
Intercom
Electrical
Power
125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
NFC
Not supported
Not supported
SUPREMA / ISO 19794-2 / ANSI 378
MINEX certified and compliant
Not supported
10,000
10,000
10
1,000,000
Not supported
1.0 GHz
8GB Flash + 64MB RAM
Not supported
Multiple colors
Multi-tone Buzzer
-20°C ~ 50°C
-40°C ~ 70°C
0% ~ 80%, non-condensing
0% ~ 90%, non-condensing
Device: 162g, Bracket: 39g (Including washer and bolt)
50 x 164 x 37.5
Supported
Not supported
10/100 Mbps, auto MDI/MDI-X
1ch Host or Slave (Selectable)
1ch Input or Output (Selectable)
2ch Inputs
1 Relay
Not supported
Not supported
Not supported
Not supported
DC 12V
125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR/Seos
NFC
Not supported
Not supported
SUPREMA / ISO 19794-2 / ANSI 378
MINEX certified and compliant
Not supported
10,000
10,000
10
1,000,000
Not supported
1.0 GHz
8GB Flash + 64MB RAM
Not supported
Multiple colors
Multi-tone Buzzer
-20°C ~ 50°C
-40°C ~ 70°C
0% ~ 80%, non-condensing
0% ~ 90%, non-condensing
Device: 162g, Bracket: 39g (Including washer and bolt)
50 x 164 x 37.5
Supported
Not supported
10/100 Mbps, auto MDI/MDI-X
1ch Host or Slave (Selectable)
1ch Input or Output (Selectable)
2ch Inputs
1 Relay
Not supported
Not supported
Not supported
Not supported
DC 12V

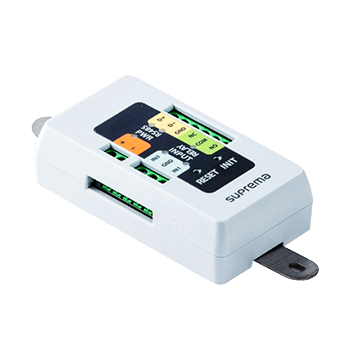

Compact Secure Single Door I/O Module

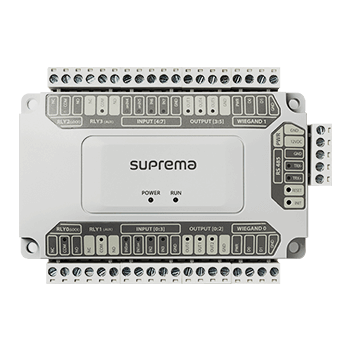

Multiple Output Extension Module

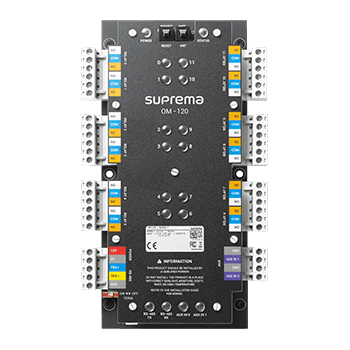

Secure Multi Door I/O Module
30
2019.09
30
2018.11
30
2018.11
19
2018.11
19
2018.11
19
2018.11
19
2018.11

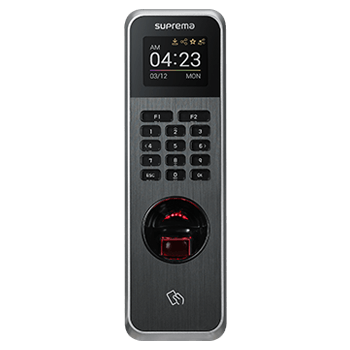

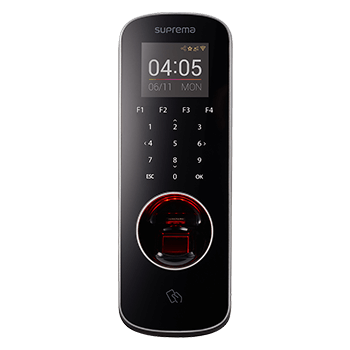

BioStation L2

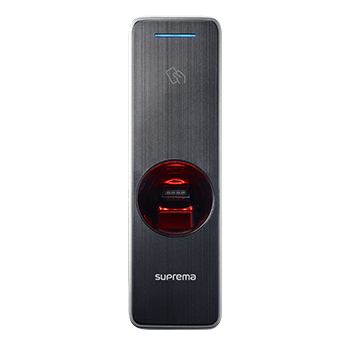

BioEntry W2
